3rd gen Cummins Compound Turbo Kits for 5.9 Cummins 2003-07
Our compounds attach to the factory exhaust, and retain factory battery location.
Fits like OEM on 2003 2004 2005 2006 2007 Trucks
From Stock Horsepower up to 1100 HP.
Available Kits. Choose your S300 over S400 Turbos
Stage 1 Max 550hp Stock Turbo over S475
Stage 2.5 Max 625hp S362/68/.70 over S475
Stage 4 Max 675hp S363/68/.70 over S475
Stage 4.5 Max 675hp S363/68/.70 Ball Bearing over S480
Stage 5 Max 700hp S363/73/.80 over S475
Stage 5.5 Max 750hp S363/73/.80 Ball Bearing over S480
Stage 8 Max 1100hp S366/73/.80 over S480
Stage 8.5 Max 1100hp S366/73/.80 Ball Bearing over S480
Choosing Your Compounds is easy!
Determine your horsepower level at the wheels, keeping in mind our compound turbo kit will add about 25%.
If you have 400 HP, multiply 400 x 1.25 = 500 hp (this will be your power after the compounds).
Using this horsepower number, determine what Stage Level of kit you want from the list above.
Decide if you want to add the Turbonator® VGT exhaust housing option for faster spool-up and/or exhaust braking.
That's it! Select your kit from the drop-down.
Why add the VGT/INT option?
Improves spool-up approximately 200 RPM's.
Increases low end power and responsiveness.
Allow for exhaust braking within the turbo.
Why Add the Ball Bearing option?
Improves spool-up approximately 150-200 RPM's.
DPS Compound Turbo Features:
Excellent factory-like fit in 3rd gen Cummins.
Battery stays where it is.
Wastegate is standard allowing boost adjustment on Cummins diesels, excluding VGT/INT.
Performance 3-Piece Exhaust Manifold included.
Super high flow air filter Included
Kevlar/Nomex lined silicone charge pipe provide superior flow and fitment compared to steel.
High pressure metal charge pipe.
Cast hot pipe, not welded thin steel.
Flexible Steel braided oil supply lines
Stainless oil drain lines
S400 Atmospheric turbocharger (either 75mm or 80mm).
S300 High Pressure turbo.
Ball bearing turbos available for lightning fast spool up.
Turbonator® VGT/INT exhaust housing available for improved spool-up and exhaust braking.
Support bracket for Lower (large) turbocharger.
Our Compound turbos are the best turbo upgrade you can do for 3rd Gen Cummins
Computer Flow Model Tested for unmatched air and exhaust flow.
Attaches to the 3rd Gen Cummins factory exhaust.
DPS Compound Turbo Benefits:
Lower EGT's by 250-450 degrees, over a single turbocharger.
Increase horsepower by 22% to 30% depending on your turbo selection.
All of our 3rd Gen Compounds are excellent for towing.
Why Diesel Power Source 3rd Gen Cummins Compound Turbos Work So Well
A lot more cool air enters the cylinders, because the staged dual staged compressors work together within their most efficient zones. The boost air is typically over 100 degrees cooler per pressure made than from a single turbo.
The air entering the cylinder is at higher pressure, bringing the boost pressure and exhaust drive pressures near a 1:1 ratio. The intake stroke can actually produce power.
There are additional air molecules in the cylinder which do not get involved in combustion which carry the heat out of the cylinder (similar to how a jet engine bypass cools the exhaust).
It has more complete combustion in the cylinders because there’s more air in the cylinder to burn all of the fuel, cleans exhaust.
DPS compounds for 5.9 Cummins trucks are all designed on CAD/CAM Software, using CFD (Computational Fluid Dynamics) Testing. Our Cummins compound turbos give a factory-like fit with the highest performance possible. Everything fits like it was built from the factory, and performs so well. You’ll wonder how you ever lived without them.
Looking for a 1st Gen Compound Kit or 2nd Gen Compound Kit?
Head Studs Recommended For:
2003-2007 engines over 55 psi boost, and fire rings for over 65 psi boost
Our Compound Turbo systems are all capable of over more than 55 psi, but are adjustable depending on truck.

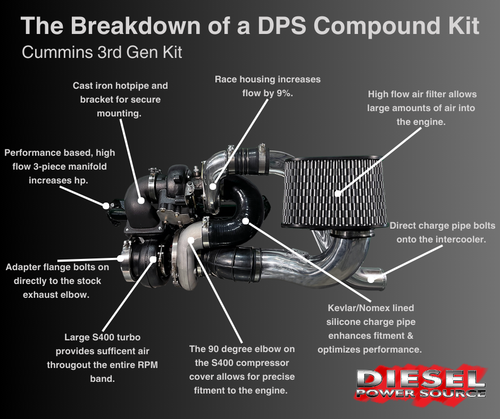

Kit are complete, they include:
Both s300 and s400 turbos (except add-a-turbo kit)
Exhaust Manifold
All air, exhaust and oil tubing
Exhaust adapter to fit attach to the factory exhaust.
***These kits do NOT have a CARB exemption. However our exhaust manifolds do.
